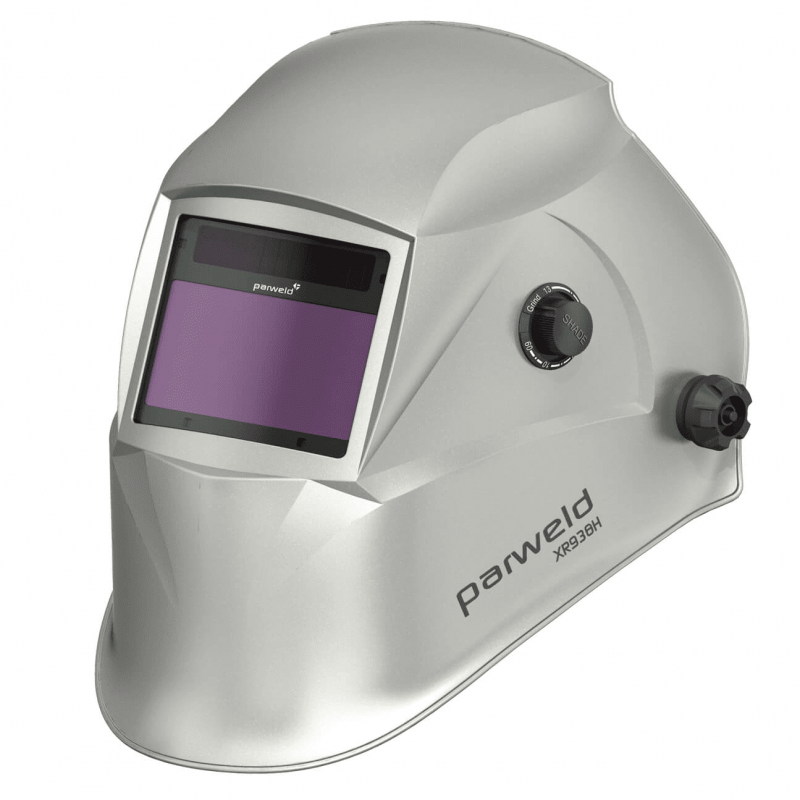

True Colour Light Reactive Welding and Grinding Helmet (Silver)
Trade Account required to place order
Product information
The XR938H True Colour Light Reactive Welding and Grinding Helmet is both slim and lightweight in construction. Manufactured from a high impact polyamide nylon material which ensures the helmet provides high levels of comfort and durability. The metallic paint finish ensures maximum heat reflection.
With Full Face Coverage, curved design with a clear spatter shield over the optics provides maximum clarity. The helmet is fully adjustable to suit all head and body types. Features full neck coverage, locking headgear and automatic power on/off switch.
The auto on, auto darkening, wide view lens switches from light to dark in 1/30,000th of a second and offers continuous eye protection against UV and IR radiation, even when the lens is in the light state mode. The grinding switch is conveniently located on the outside of the helmet. The switch locks the filter in the light state (Shade DIN 4) to enable the helmet to be used as a grinding visor.
The helmet is powered by a solar cell with replaceable backup battery.
The welding filter has 4 sensors that react independently as the welding arc is struck enabling the almost instantaneous darkening of the filter. The switching sensitivity knob is located on the inside of the helmet and allows the helmet to be tuned to work in different ambient light levels. All Parweld filters have a Shade 4 light state, ideal for welding preparation.
|
Weight |
N/A |
|
Viewing Size |
100 x 53mm (3.94” x 2.08”) |
|
Cartridge Size |
110mm x 90mm (4.33” x 3.54”) |
|
Style & Design |
Silver |
|
Grind Mode |
Yes |
|
External Shade Control |
Yes |
|
Shade |
5-13 |
|
Light State |
DIN Shade 4 |
|
Dark State |
DIN Shade 5 to 13 Variable |
|
Dark to Light |
0.1-1.0 seconds (External variable) |
|
Switching Time Light to Dark |
1/30,000 of a Second (Automatic Adjustment) |
|
Delay |
Variable |
|
Sensitivity |
Variable |
|
UV/IR Protection |
Permanent Shade DIN16 |
|
Power Supply |
Built-In Solar Cells and Replaceable Battery Pack |
|
Battery Life Expectancy |
2 years |
|
Minimum Amp Requirement |
5A |
|
Power On/Off |
Fully Automatic |
|
Storage Temperature |
-20ºC to +70ºC (-4ºF to -158ºF) |
|
Operating Temperature |
-10ºC to +60ºC (14ºF to 140ºF) |
|
Material |
High Impact Polyamide Nylon |
|
Suitable for |
TIG Welding |
|
Warranty |
24 months |
|
Conforms To |
BS EN 166:2002, BS EN 175, BS EN 175:1997, BS EN 379, BS EN 379:2003+A1:2009, EN 166 |
Quantity: 1
Part Number: MS 151C
