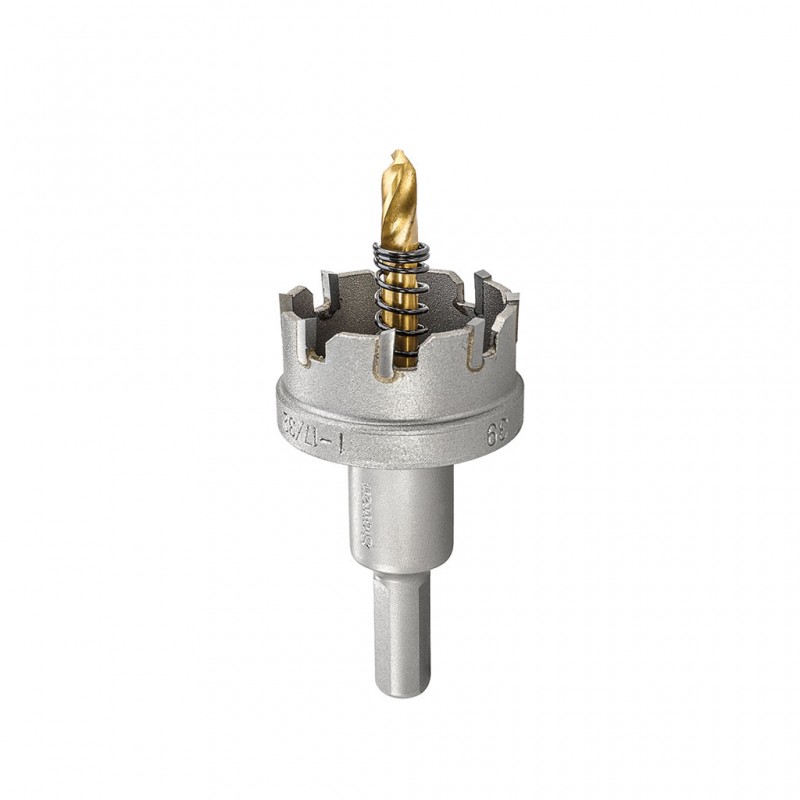

95mm TCT Sheet Metal Holesaw

SM TCT DEEP CUT

Tungsten Carbide Tipped Stainless Steel (Sheet Metal – SM) Hole Saws are ideal for cutting high alloy and stainless steels, non-ferrous light metals and reinforced fabrics at much faster speeds than is possible with a bi-metal hole saw. Its tough tungsten carbide tipped teeth have a positive cutting angle which provides fast and efficient removal of chips and swarf. It is recommended for cutting sheet metal up to 3mm (1/8”) thick.

Important Safety Recommendations:

Should only be used to cut flat surfaces

Maximum material thickness of 2mm for stainless steel, mild steel and non-ferrous metals

Recommended operating speed, 850 to 1200 rpm

We recommended saws above 50mm diameter should only be used on pillar drills. Smaller diameters can be used with both handheld drills and pillar drills

Safety glasses and gloves are recommended

Do not push too hard, to avoid an impact of the TCT teeth.

Once the teeth touch the material, drill with slight steady pressure

Features

Split-point drill for faster penetration and self-centering helping keep the drill on target and prevent wandering

Ideal for production cutting, and particularly suitable for use in drills with limited speed control

Tungsten carbide tipped teeth provide superb product life and cutting performance

Replacement pilot drills are available

Solid one-piece construction, with complete assembly including arbor and pilot drill

Fitted with ejector spring for easy core removal

Step drill for faster cuts in thinner materials

Progressive carbide tooth grind offers faster cuts with minimal snagging, better swarf removal, minimising heat build up and prolonging the saw’s life.

New shallow gullet design increases tooth strength

Safety stop at the base of the hole saw prevents drilling beyond the maximum cutting depth of 13mm (1/2″)

Recommended cutting depth 3mm (1/8″)

Quantity: 1

Part Number: SM95
